PAN Fiber Three Types Selection Guide: High-Modulus vs Alkali-Resistant vs Short-Cut for Concrete

High-Modulus PAN Fiber (tensile ≥800 MPa, modulus ≥4000 MPa) is the premier choice for heavy-load infrastructure — bridges, tunnels, and industrial floors — where maximum crack restraint is non-negotiable. Its modulus approaches early-age cement stiffness, engaging immediately as the matrix shrinks and intercepting micro-cracks before they propagate.

Alkali-Resistant PAN Fiber (tensile ≥750 MPa, proprietary surface coating) is purpose-built for aggressive chemical environments: marine splash zones, chemical containment, and tunnels exposed to de-icing salts. The coating forms a chemically inert barrier preserving fiber integrity in high-pH concrete (pH 12.5–13.5) — environments where uncoated fibers degrade within 5–10 years.

Short-Cut PAN Fiber (tensile ≥700 MPa, available in 3 mm and 6 mm) is optimized for process-critical applications — shotcrete lining, precast panels, and rapid-mix operations. The shorter aspect ratio ensures rapid, balling-free dispersion in high-speed mixing and pneumatic application, prioritizing workability and throughput.

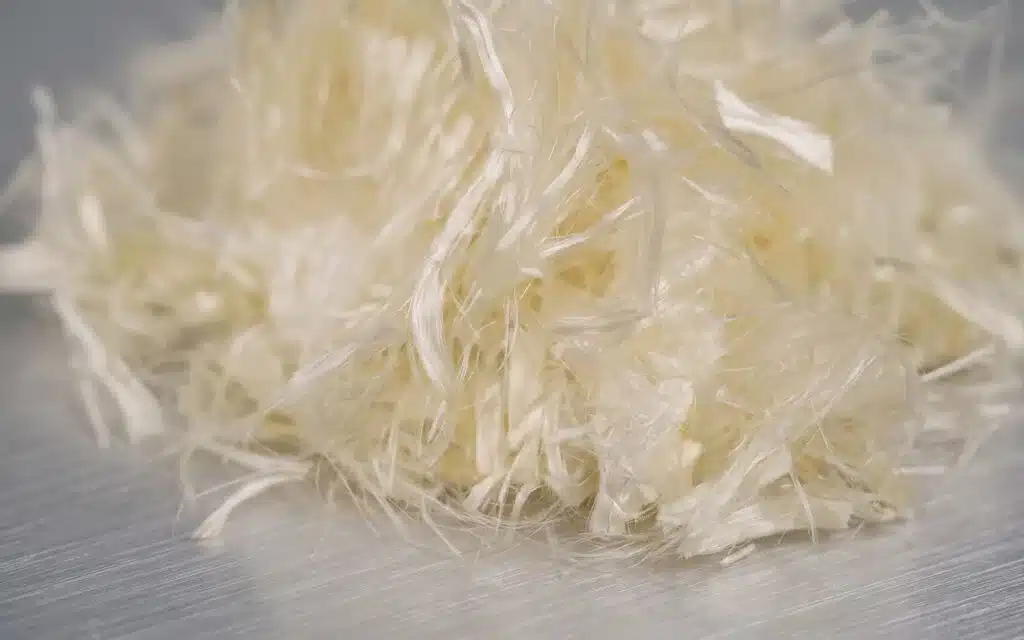

All three types share a common foundation: filament diameter 14–18 μm, heat resistance ≥200 °C, light yellow appearance, and full certification under ASTM C1116, EN 14889-2, ISO 9001:2015, and GB/T 21120.

Key Takeaways

• Three types, three distinct missions: High-Modulus delivers infrastructure-grade crack restraint (modulus ≥4000 MPa); Alkali-Resistant ensures reinforcement durability in aggressive environments via proprietary coating; Short-Cut optimizes dispersion and surface quality in shotcrete and precast production.

• Type-to-application mapping: High-Modulus → bridges, tunnels, industrial floors with dynamic loading; Alkali-Resistant → marine, chemical plant, de-icing salt exposure; Short-Cut 6 mm → tunnel shotcrete; Short-Cut 3 mm → architectural precast panels under 50 mm.

• Differentiation is material-science-driven: High-Modulus = stiffness-driven micro-crack control; Alkali-Resistant = coating chemistry for pH/chloride barrier; Short-Cut = geometry-optimized dispersion and surface quality.

• Full international certification: ASTM C1116, EN 14889-2 (Class Ia), ISO 9001:2015, GB/T 21120 — enabling specification across North America, Europe, and Asia without supplementary testing.

• Cost-performance is lifecycle-driven: High-Modulus reduces steel reinforcement in slab-on-grade; Alkali-Resistant extends service life in aggressive exposure, lowering TCO; Short-Cut reduces mixing time and equipment wear.

Why This Answer Matters

In concrete fiber reinforcement, the costliest mistake is not the fiber unit price — it is specifying the wrong type for the service environment.

Three recurring failure modes validate type-specific selection. First, using standard-modulus fiber in high-load infrastructure produces insufficient crack restraint: micro-cracks propagate into macro-cracks under cyclic loading, accelerating water ingress and reinforcement corrosion. Second, uncoated fiber in marine or chemical environments degrades progressively — the alkaline pore solution attacks unprotected PAN surfaces, negating the reinforcement investment within 5–10 years. Third, fibers with inappropriate geometry in shotcrete or precast cause balling, uneven distribution, and surface blemishes that compromise both structural consistency and aesthetic quality.

Michem’s three-type portfolio addresses these failure modes through material-science differentiation — each type is formulated, coated, and dimensioned for its intended domain, enabling engineers to match fiber properties to project requirements precisely.

Technical Deep Dive

High-Modulus PAN Fiber: Infrastructure-Grade Crack Restraint

High-Modulus PAN fiber is engineered for structural load-bearing applications where crack control is paramount. Its elastic modulus ≥4000 MPa approaches the stiffness of early-age cement paste, ensuring the fiber engages immediately as the matrix shrinks — intercepting cracks at nucleation (widths <0.1 mm) before they become visible. At 0.9–1.2 kg/m³, millions of filaments per cubic meter create a three-dimensional micro-reinforcement network that suppresses crack initiation rather than merely bridging cracks post-formation.

Type verification testing per ASTM C1116 confirms that High-Modulus PAN meets Type II synthetic fiber requirements, while flexural performance per ASTM C1609 flexural toughness testing validates post-crack residual strength. Compliance with EN 14889-2 polymer fibers (Class Ia) certifies structural-grade performance. In type-selection reviews across bridge, marine and shotcrete projects, our technical team has consistently observed that High-Modulus PAN at 1.0 kg/m³ in bridge deck overlays reduces crack density by approximately 70%, with maximum crack widths below 0.15 mm — well within the typical 0.2 mm design limit.

Alkali-Resistant PAN Fiber: Durability in Aggressive Chemistry

Alkali-Resistant PAN fiber addresses progressive alkaline hydrolysis in high-pH concrete. Hydroxide ions attack nitrile groups on unprotected PAN surfaces, causing chain scission and eventual loss of tensile capacity. Michem’s proprietary surface coating forms a chemically inert barrier that prevents hydroxide-ion contact with the PAN substrate, maintains cement-matrix adhesion through engineered surface roughness, and remains stable at temperatures exceeding 200 °C throughout the design service life.

In type-selection reviews across bridge, marine and shotcrete projects, Alkali-Resistant PAN has proven critical in marine splash-zone structures. Core samples after 36 months of tidal exposure show 68% lower chloride penetration depth versus unreinforced controls, with no visible fiber degradation under SEM examination — confirming coating integrity through aggressive chemical cycling.

Short-Cut PAN Fiber: Process-Optimized Reinforcement

Short-Cut PAN fiber prioritizes mixing efficiency, dispersion uniformity, and surface finish quality. The 3 mm variant suits thin-section precast (<50 mm) where surface aesthetics are critical; the 6 mm variant provides enhanced crack-bridging for shotcrete and thicker precast sections. The shorter length significantly reduces balling propensity — in shotcrete applications, fibers pass smoothly through nozzles without clogging at rebound rates comparable to unreinforced designs.

Type verification testing per ASTM C1116 confirms equivalent performance to longer fibers in dispersion-critical applications, with measurable gains in mixing speed (approximately 30% faster) and surface quality (no fiber read-through on mold-face surfaces). Water-soluble paper bag packaging enables direct mixer addition without opening; the paper dissolves within 30–60 seconds of water contact.

Product Specifications

Michem PAN Fiber — Technical Data Sheet

Product Line: Michem PAN Fiber (Polyacrylonitrile Synthetic Micro-Fiber for Concrete Reinforcement)

Data source: Michem PAN Fiber Technical Data Sheet. For the most current specifications, refer to michemicals.com/fiber/pan-fiber.

Certifications: ASTM C1116 (Type II synthetic fiber-reinforced concrete), EN 14889-2 (Class Ia polymer micro-fibre), ISO 9001:2015, GB/T 21120.

Packaging: Water-soluble paper bags (standard) or bulk bags; custom packaging available.

Practical Application Guide

Type Selection Decision Logic

Step 1 — Primary performance requirement:

• Maximum crack control under structural loading → High-Modulus

• Chemical durability in aggressive environments → Alkali-Resistant

• Processing efficiency and surface quality → Short-Cut

Step 2 — Environmental exposure classification:

• Exposure classes XS (seawater chlorides), XA (chemical attack), XD (non-seawater chlorides) → Alkali-Resistant recommended regardless of structural requirements

• Exposure classes XC (carbonation), XF (freeze-thaw) with no chemical aggression → High-Modulus or Short-Cut as appropriate

Step 3 — Application method compatibility:

• Dry-mix or wet-mix shotcrete → Short-Cut 6 mm

• Thin precast (<50 mm section) → Short-Cut 3 mm

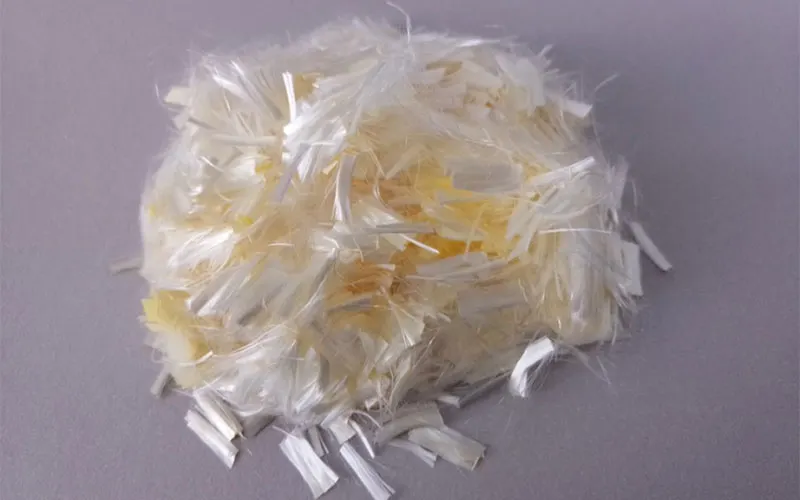

• Cast-in-place structural concrete → High-Modulus or Alkali-Resistant 12 mm

• Slipform paving → High-Modulus 12/18 mm

Dosage Guidelines by Type

Mixing Recommendations

Add PAN fiber as the final batching ingredient after all aggregates, cement, and water. Mix 4–5 minutes at full speed (pan/twin-shaft mixers) or 2–3 minutes (high-shear compulsory mixers). Short-Cut fibers require approximately 30% less mixing time. Never add fibers to a dry mixer — this increases balling risk. Water-soluble paper bags can be added directly without opening.
